Motion Sensor Trash Can (2017)

Product Design

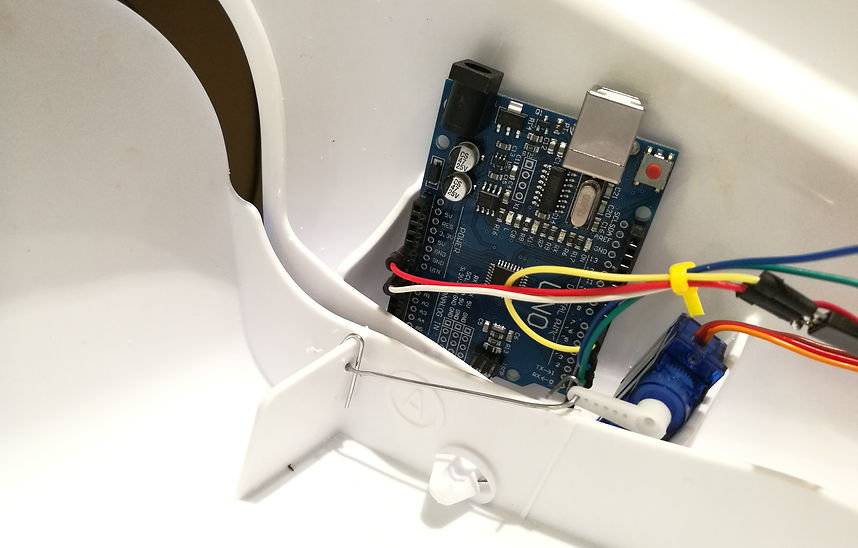

This trash can is ultrasonic sensor activated, servo motor lifted, and Arduino powered. The ultrasonic sensor acts as a trigger to rotate the servo, which transfers the motion through a simple 4-bar linkage inside the trash can lid to the hinge. Lid is then lifted for certain amount of time before servo motor resume to the home position.

Motion Sensor Trash Can

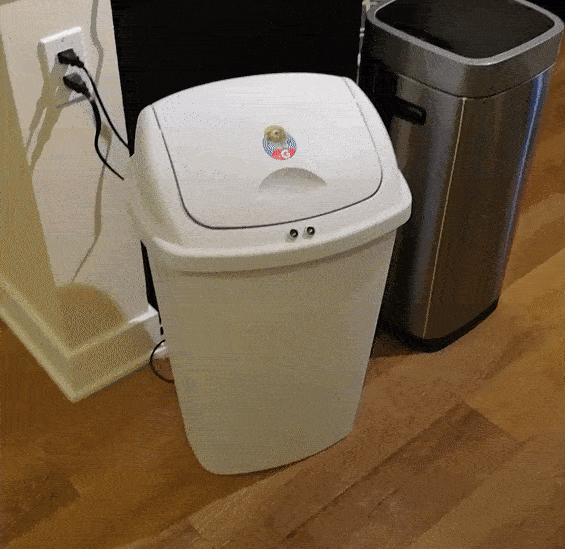

Product Demo
